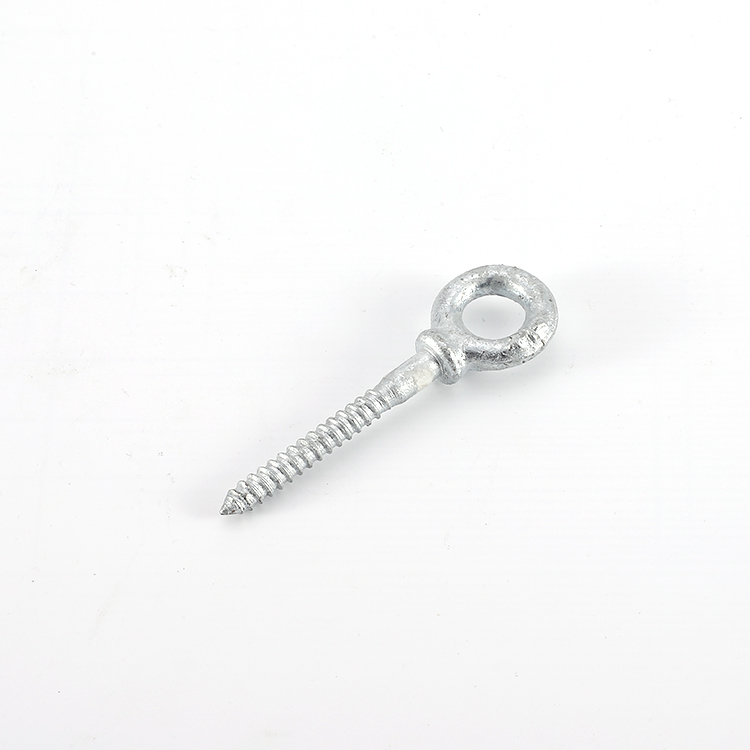

G-275 Screw Eye Bolts
G-275 Screw Eye Bolts
Forged Steel-Quenched and Tempered
Hot Dip Galvanized
Shank Dia.& Length(in.) |
G-275 Stock No. | Weight per 100 (Ibs.) | Dimensions (in.) | ||||||||
A | B | C | D | E | F | G | H | J | |||
1/4x2 | 1046111 | 4.30 | 0.25 | 1.50 | 2.00 | 2.50 | 2.94 | 0.50 | 0.88 | 0.19 | 0.47 |
5/16x2-1/4 | 1046139 | 9.90 | 0.31 | 1.69 | 2.25 | 2.94 | 3.50 | 0.63 | 1.13 | 0.25 | 0.56 |
3/8x2-1/2 | 1046157 | 18.88 | 0.38 | 1.88 | 2.50 | 3.28 | 3.97 | 0.75 | 1.38 | 0.31 | 0.66 |
1/2×3-1/4 | 1046175 | 37.50 | 0.50 | 2.44 | 3.25 | 4.25 | 5.12 | 1.00 | 1.75 | 0.38 | 0.91 |
5/8x4 | 1046193 | 85.50 | 0.63 | 3.00 | 4.00 | 5.31 | 6.44 | 1.25 | 2.25 | 0.50 | 1.12 |
