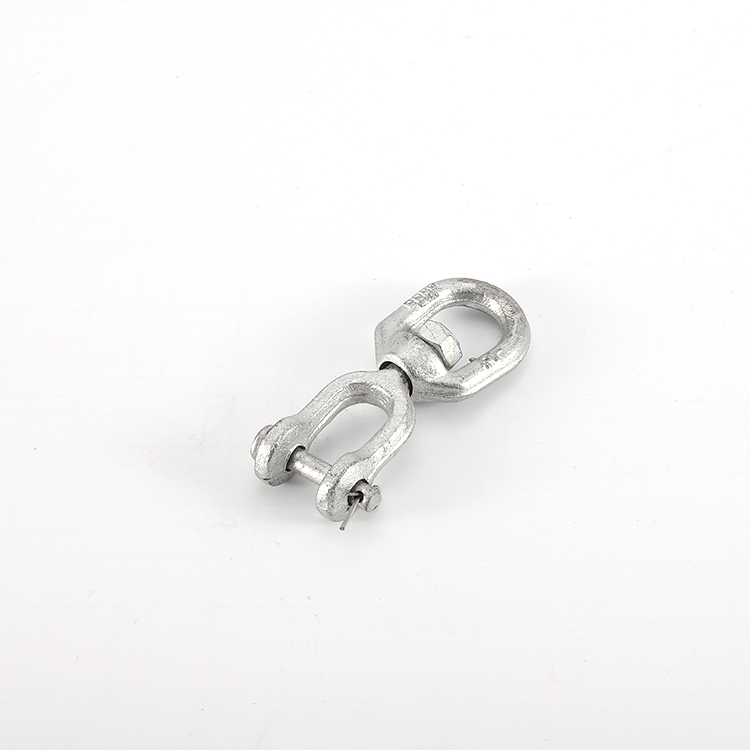

G403 Jaw End Swivels
G403 Jaw End Swivels
Forged carbon steel
Quenched and tempered
Ultimate is 5 times working load limit
SIZE(in) | WLL(Ibs) | Weight(Ibs) | B(in) | C(in) | K(in) | N(in) |
1/4" | 850 | 0.21 | 11/16" | 3/4" | 15/32" | 7/8" |
5/16" | 1250 | 0.34 | 13/16" | 1" | 1/2" | 7/8" |
3/8" | 2250 | 0.66 | 15/16" | 1-1/4" | 5/8" | 1-1/16" |
1/2" | 3600 | 1.34 | 1-5/16" | 1-1/2" | 3/4” | 1-5/16" |
5/8" | 5200 | 2.48 | 1-9/16"" | 1-3/4" | 15/16" | 1-1/2" |
3/4” | 7200 | 3.88 | 1-3/4” | 2" | 1-1/8" | 1-3/4" |
7/8" | 10000 | 5.87 | 2-1/16" | 2-1/4" | 1-3/16" | 2-1/16" |
1" | 12500 | 9.84 | 2-5/16" | 2-1/2" | 1-3/4" | 2-13/16” |
1-1/4" | 18000 | 15.75 | 2-11/16" | 3-1/8" | 2-1/16" | 2-13/16" |
1-1/2" | 45200 | 54.75 | 4-3/16" | 4" | 2-7/8" | 4-7/16" |
